ABOUT THIS PRODUCT

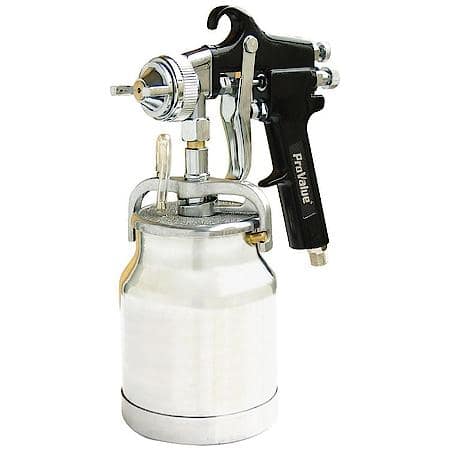

This spray gun is designed for light and medium material delivery to handle a full range of viscosity from fine surface finishes to heavy body coatings. It features a stainless steel fluid nozzle and chrome plated brass end cap. It has a brass gun head and brass adjustment tube. It features a fully adjustable spray pattern with a 1 quart spun aluminum dripless siphon cup. Precisely machined, well balanced, light weight and longer serviceability with a bleeder type, siphoned feed. It has a die-cast aluminum alloy gun body, a 2 step trigger control, self-centering nozzle, and a wide mouth, non-drip canister with quick release clamp lid.

Product Features:

• Aluminum Body
• Spray Pattern: 8" - 10"
• Orifice size: 1.8 mm
• Air Pressure: 50-70 psi
• Hose Size (ID): 3/8"
• Air Inlet: 1/4" NPT
• Fluid Inlet (NPS): 3/8"
• Cup Capacity: 1 Qt (1000 cc)
• Average Air Consumption @ 60 PSI: 8.5 - 12 cfm
• Min Recommended Compressor (HP): 3 to 4 hp based on intermittent (on/off) operation
• Min Recommended Tank Size: 20 -30 Gallons based on intermittent (on/off) operation
