ABOUT THIS PRODUCT

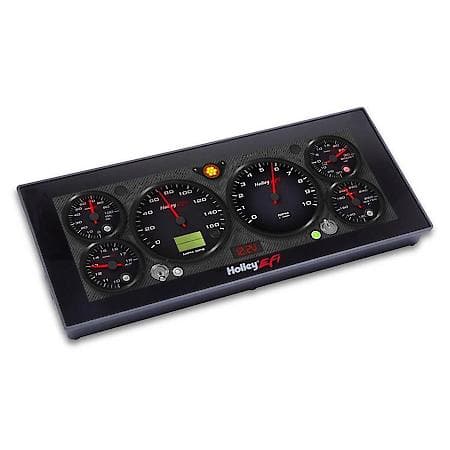

Monitor the power of your Holley EFI system at a glance. The Holley EFI Pro Dash measures 13.44" wide, 5.81" tall, and 1.25" deep and is completely customizable for use in a variety of motorsports applications. It features a 12.3" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Holley EFI 12.3" Pro Dash includes everything needed for installation.

Product Features:

• Plug-and-play display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2)
• Real-time ECU tuning allows you to make quick tune changes without needing to hook up a laptop (HP and Dominator ECUs only)
• Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
• 16 default background skins pre-loaded with unlimited options for importing custom layouts
• Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual switch panel eliminates the need for external toggle switches
• Manual or auto-brightness features for easy viewing day or night
• Built-in GPS with odometer function (antenna included)
• On-screen datalog playback features allows you to review vital run information
• Expandable storage via USB
• No stylus required - utilizes capacitive touch just like your smart phone
• User definable channel alarms and warnings
• 6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included
• Includes everything needed for installation
• USB keyboard and mouse functionality makes it quick and easy to setup new layouts
• Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
• Input and output functionality for 13 multi-configurable inputs and 4 ground switched outputs
• User defined alarms for any input
• Upgradable with future software enhancements
• Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall
• Dash weight - 3.29lbs
• Compatible with our Plug-and-Play Programmable Shift Light - Part Number 553-107
