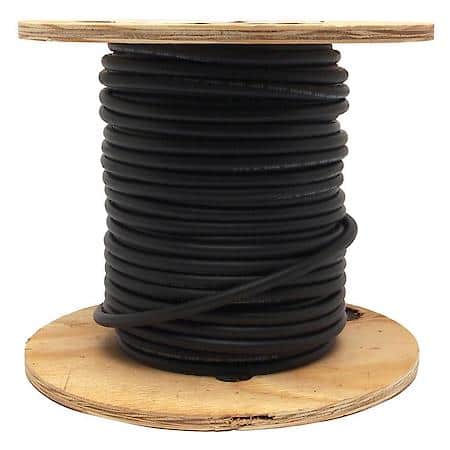

ABOUT THIS PRODUCT

The #4 American Wire Gauge (AWG) x 125' (38.1m) highly flexible welding cable is expertly crafted with 364 strands of fully annealed soft-drawn copper, ensuring exceptional durability and versatility. This cable is designed for use in stingers/Wheelips, leads, and ground clamp welding assemblies, as well as in battery applications such as chargers and wire harnesses. It features a nominal wall thickness of .060in (1.52mm) and an outside diameter of .343in (8.71mm), with a cable weight of 147 lbs. per 1,000' (67kg per 304.8m). The cable is wrapped with a paper separator between the copper and the outer low-smoke, halogen-free EPDM jacket, providing resistance to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid. Rated at 600 volts, it operates within a conductor temperature range of -58°F (-50°C) to 221°F (105°C). Compliant with SAE J1127, REACH, RoHS, CMRT, and Prop 65 standards, and approved under NEC Article 630 for electric welders, this cable is also suitable for battery use per UL 558 and 583. Proudly made in the USA, it offers reliable performance for a wide range of demanding applications.

Product Features:

• Made in the USA, ensuring high quality and reliability
• Constructed with 364 strands of fully annealed soft-drawn copper for durability
• Rated for 600 volts with a conductor temperature range of -58░F to 221░F (-50░C to 105░C)
• Rated for 600 volts with a conductor temperature range of -58°F to 221°F (-50°C to 105°C)
• Low-smoke, halogen-free EPDM jacket is highly flexible yet resistant to various chemicals and extreme conditions
• Nominal wall thickness of .060in (1.52mm) and outside diameter of .343in (8.71mm)
• Compliant with SAE J1127, REACH, RoHS, CMRT, and Prop 65 standards
• Approved under NEC Article 630 for electric welders and suitable for battery use per UL 558 and 583
