ABOUT THIS PRODUCT

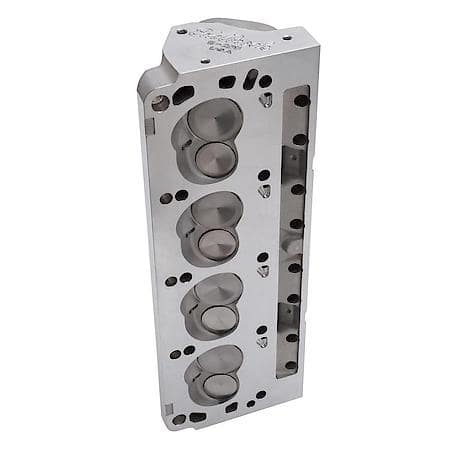

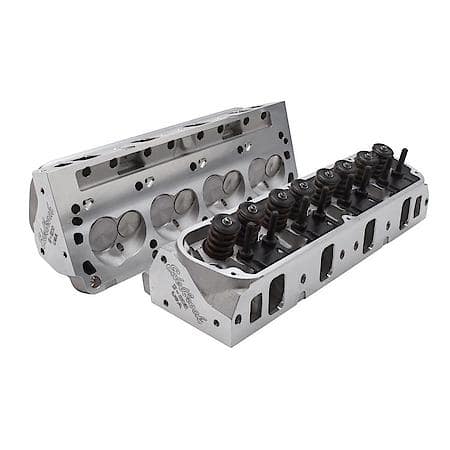

The Edelbrock No. 5028 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock No. 5028 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

Product Features:

• Material: Aluminum
• Grade Type: Performance
• Quantity: Set of 2
• Guide Plate Material: Hardened Steel
• Horsepower: 400-525 HP
• Seat Angle: Exhaust 45 deg/Intake 45 deg
• Intake Valve Diameter: 2.08 in
• Intake Runner Volume: 205 cc
• Push Rod Diameter: (Suggested) 0.3125 in
• Rocker Stud Diameter: 0.375 in
• Valve Angle: 20 Degree
• Valve Spring Diameter:1.46 in
• Valve Spring Maximum Lift: 0.575 in
• Valve Stem Diameter: 0.3438 in
