ABOUT THIS PRODUCT

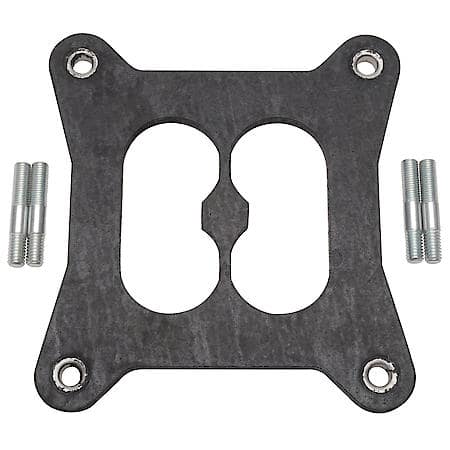

The Edelbrock Square-bore Heat Insulator Gasket No. 9266 is designed to prevent percolation on Edelbrock Performer Series Carburetors exposed to extreme under hood temperatures. This gasket features a divided center which will allow dual plane Performer and RPM manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will Not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter No. 2732. Remove the short carb studs and install the longer studs. Install the No. 9266 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket No. 9266 is rigid enough to replace square-bore adapter plate No. 2732, if required.

Product Features:

• Helps Prevents Fuel Percolation
• For Extreme Underhood Temps
• Square Bore Applications Only
• Comes w/Extended Carb Studs
