ABOUT THIS PRODUCT

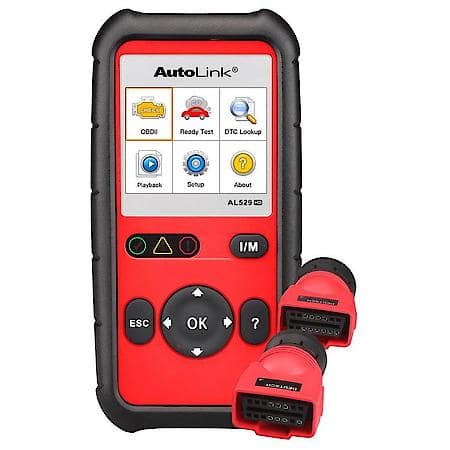

The AutoLINK AL529HD is a heavy duty engine code reader for vehicles class 1 (0-6,000LBS) - class 9 (33,000LBS). It can read and erase heavy duty engine DTCS, supports J1939 and J1708 heavy duty protocols, can graph/record/playback live data, and display live and freeze frame data. The AL529HD supports all 10 OBDII test modes, has one-click I/M readiness/emissions testing and has enhanced Mode 6 diagnostics. It is updatable via PC, and includes a color screen, Deutsch 9-pin and Deutsch 6-pin connectors, and an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.

Product Features:

• Read/ Erase Heavy Duty Engine DTCs.
• Class 1-9 Commercial Vehicles
• Includes Deutsch 9-Pin & 6-Pin Ada Pointers
• Supports J1939 & J1708 HD Protocols
• One-Touch I/M Readiness/ LED Indicator
• FREE Lifetime Software (lifetime of tool)
• Support All 10 OBDII Test Modes
• Enhanced Mode 6 Diagnostics
• Graph, Record & Playback Live Data
• Display Live & Freeze Frame Data
• Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
• Includes OBDII Cable
• Easy-To-Use Navigation /Software Updates via PC
• Full Color Display 320x240
• Save Files with Micro SD Card (not included)
