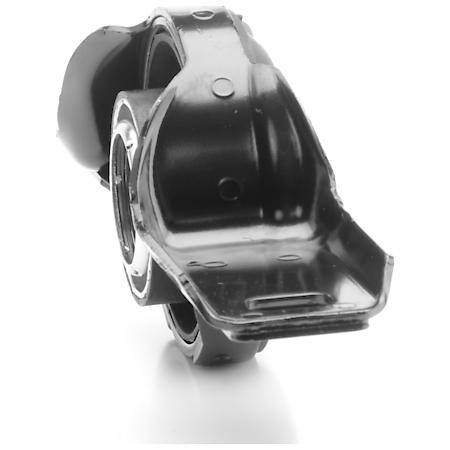

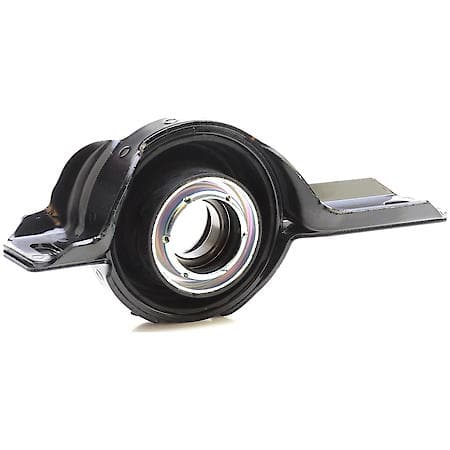

Center Support Bearing Motor Mount: Rear, 1 Piece

ABOUT THIS PRODUCT

Anchor 6135 Center support bearings support a driveshaft between transmission and differential. This mount relieves stress on driveline components. Each part is engineered and designed to OE Standards. Natural and SBR rubber provide maximum life and performance. Steel fasteners are heat treated grade 5 bolts. A special bonding agent is used to ensure a rubber to metal bond. Rubber material is mixed to specific Durometer, hardness.

Product Features:

• MAXIMUM VIBRATION DAMPENING: Rubber cushion is made of high grade rubber that ensures maximum dampening of vibration and the ability to absorb over loads.
• HEAVY GAUGE STEEL FRAME: The housing frame is made from heavy gauge steel with durability that extends the service life.
• READY TO INSTALL: Most center supports include a sealed bearing and dust shield and are ready to install.
• For Years: 2009-2016
• Weight approx: 3 Lbs
• BEARING ID / BORE: 1.1811 In. / 30 mm
• CENTERLINE: 0.50 In. / 13 mm
• Mount Width: 8.00 In. / 203 mm
• Rear Num 2
• Center support bearings support a driveshaft between transmission and differential. This mount relieves stress on driveline components.
• All center supports are specifically engineered and designed to OE standards using the latest CAD/CAM engineering process ensuring the highest consistency and quality.
• Only natural and Styrene Butadiene rubber is used to provide premium abrasion resistance and aging stability to ensure maximum life and performance.
• Any included fasteners are hardened steel with heat treated Grade #5 bolts.
• Rubber cushion is made of high grade rubber that ensures maximum dampening of vibration and the ability to absorb over loads.
• The housing frame is made from durable heavy gauge steel that extends the service life.
• Most center supports include a sealed bearing and dust shield and are ready to install.
