ABOUT THIS PRODUCT

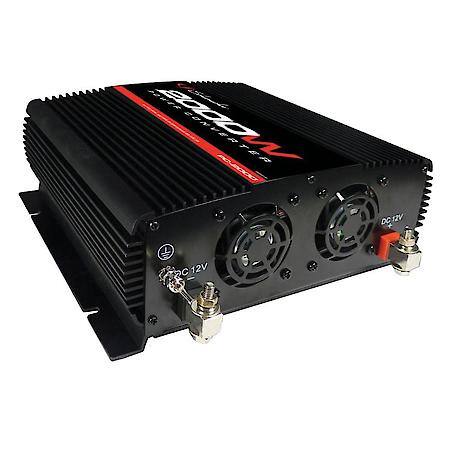

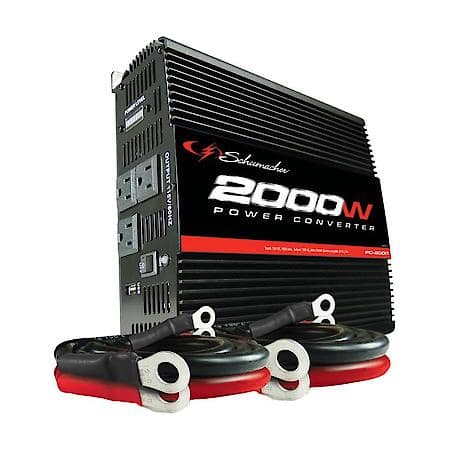

The Schumacher Electric PC-2000 2000W Continuous/4000W Peak DC-to-AC Power Converter converts your vehicle's power to household power. With 2000 continuous watts and 4000 peak watts, the unit is perfect for heavy-duty remote tools and equipment. It's also ideal for emergencies, power outages, and tailgating. It includes three 120V AC outlets, as well as a 2A USB port for operating a range of devices. Connect the unit directly to the vehicle battery with ring connectors. Protection against power surges and overheating is built into every unit.

Product Features:

• Converts 12V battery power to 120V AC household power

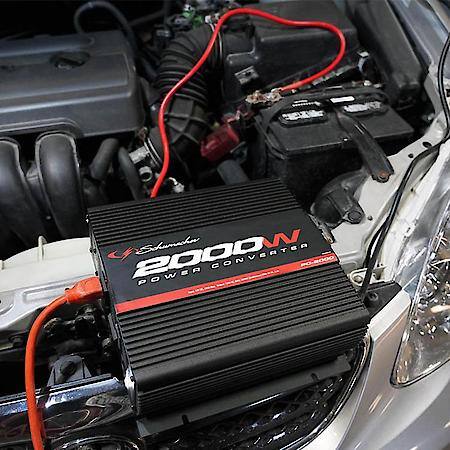

• Easy to use; connects directly to battery
• Easy to use;áconnects directly to battery
• Three NEMA 5-15 120V household AC outlets
• 5V 2A USB port
• Connects with 12 volt accessory plug or battery clamps
• Built-in, high-speed cooling fan
• Thermal protection
• Thermal protectioná
• Surge protection
• Surge protectioná
• Thermal protection shuts unit down if operating temperature is excessive
• Surge protection protects against damaging current fluctuations
• Surge protection protects againstádamaging current fluctuations
• Low Battery alarm
• 760 continuous watts; 1520 peak watts; Digital display indicates voltage in, voltage out, power out; (2) 120V AC household outlets; (1) 2A USB port
• Maximum Continuous Power: 760 watts
• Surge output power (0.1 second): 4000 W
• Nominal input voltage: 12.8-13.2 VDC
• Nominal output voltage: 110-125 VAC
• Operating input voltage range: 10.0-15.0 VDC
• Output frequency: 60 Hz 3 Hz
• Maximum no load current draw (at nominal input voltage): 1.5 ADC
• Full load input current: 180 ADC
• Input overvoltage shutdown (at no load): 16 0.5VDC
• Input under-voltage shutdown (at no load): 10.0 0.5VDC
• Input under-voltage warning (buzzer): 10.5 0.5VDC
• Output power overload shutdown level: 2200W 200 W
• Output waveform: Modified sine wave
